The Pagani Design PD-1685 V2 Waves is a 42mm automatic dive watch powered by the Miyota 8215, presenting an embossed horizontal wave-pattern dial, ceramic unidirectional bezel, AR-coated synthetic sapphire crystal and 200m water resistance. Available across twelve colour configurations spanning steel bracelet, rubber strap and rose gold two-tone variants.

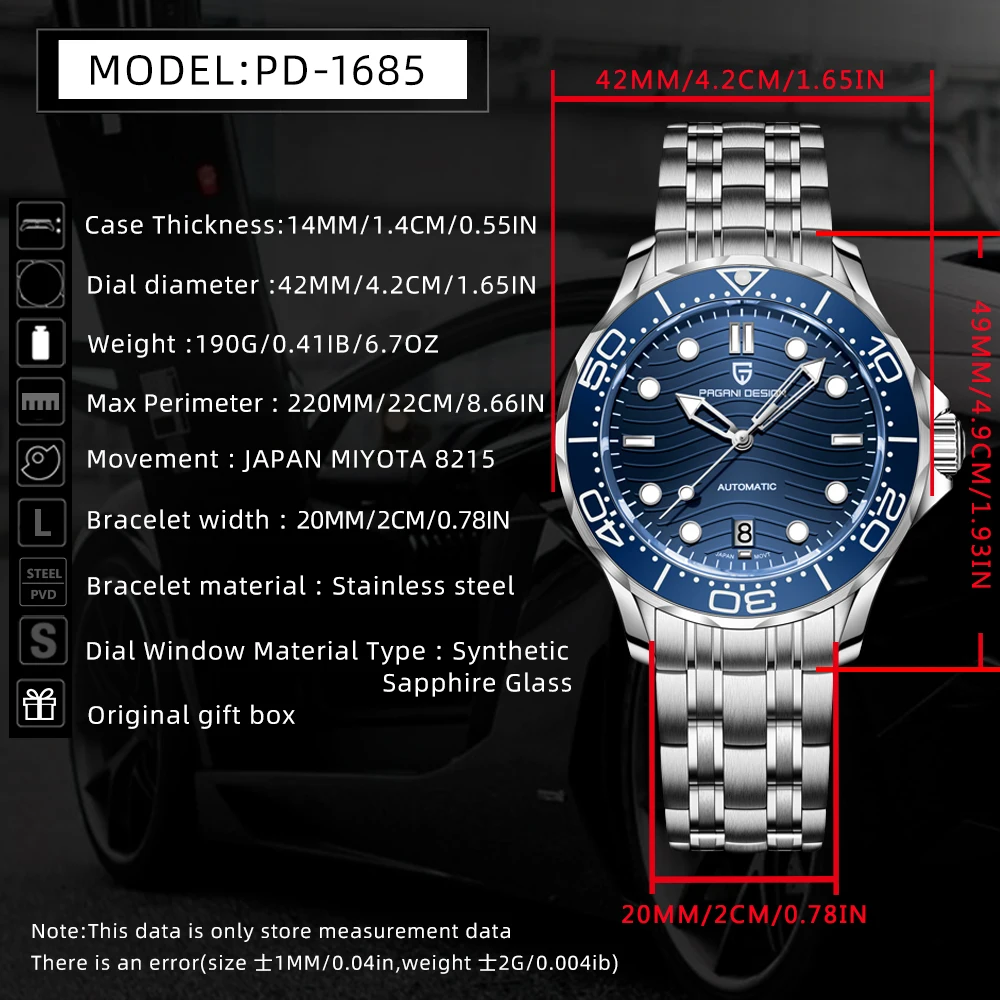

Key Specifications

Variants — Twelve Configurations

Steel Bracelet

Blue/grey steel: A grey-blue dial on stainless steel bracelet — the most formally versatile of the bracelet variants.

Blue/white steel: White dial with blue accents on steel bracelet. The highest-contrast bracelet configuration.

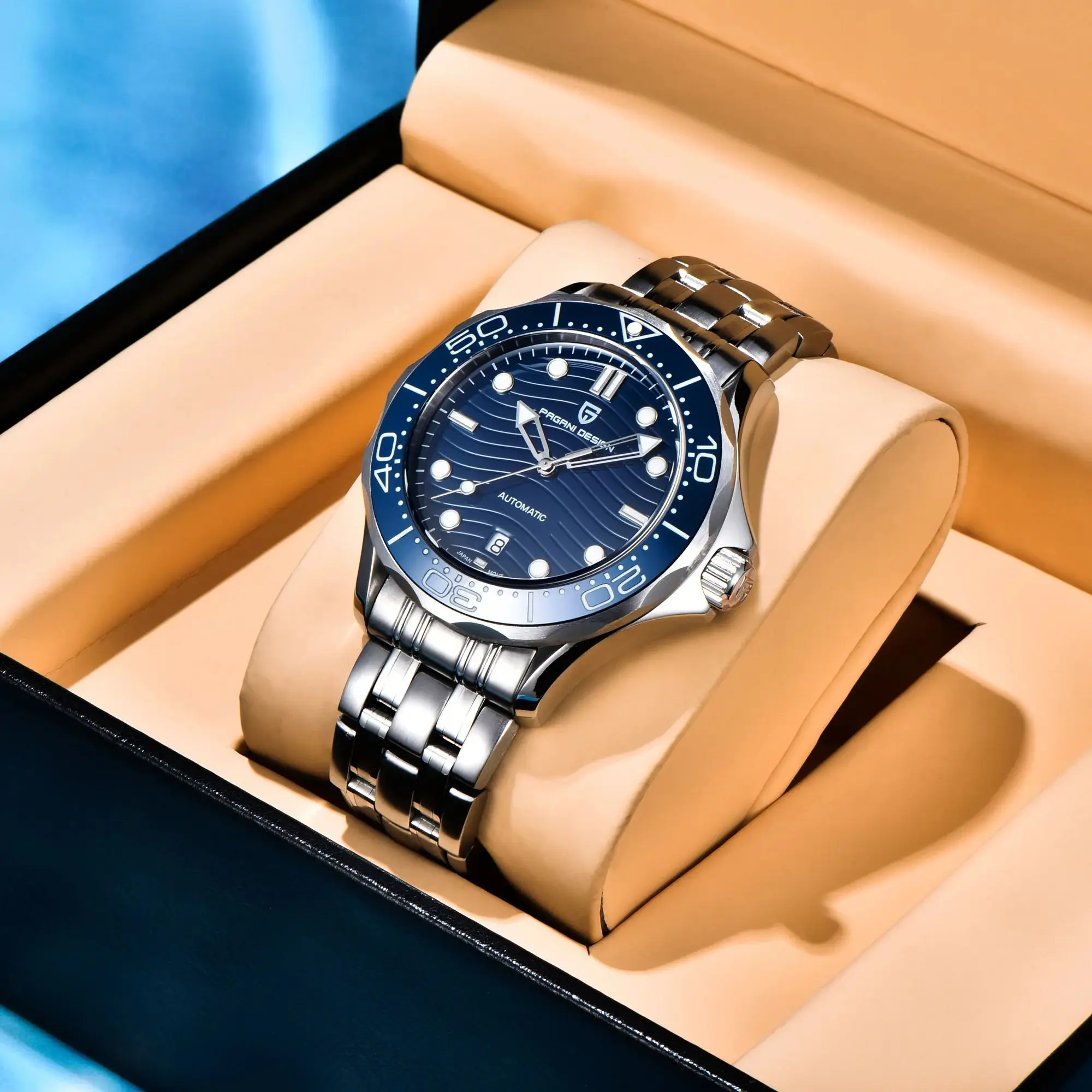

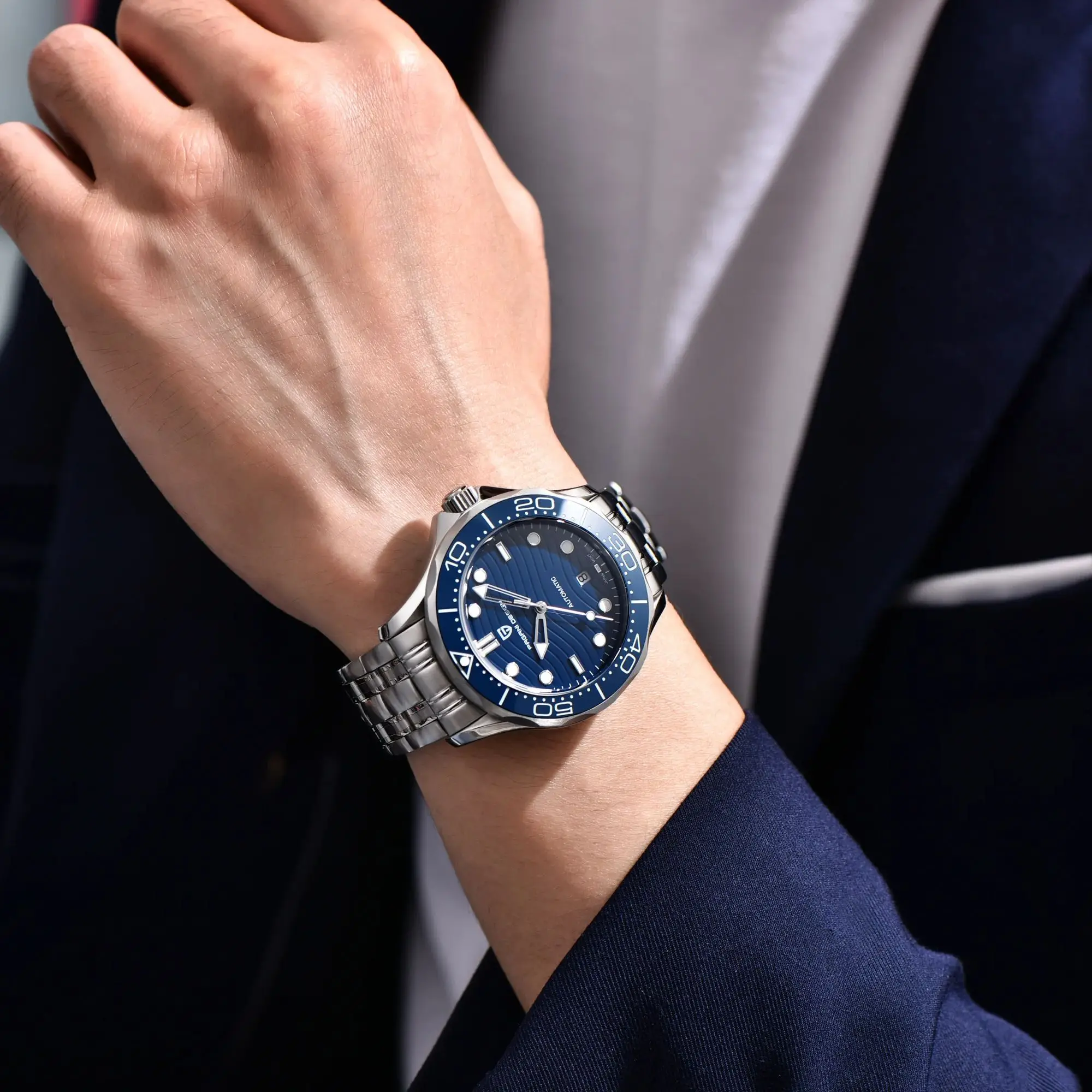

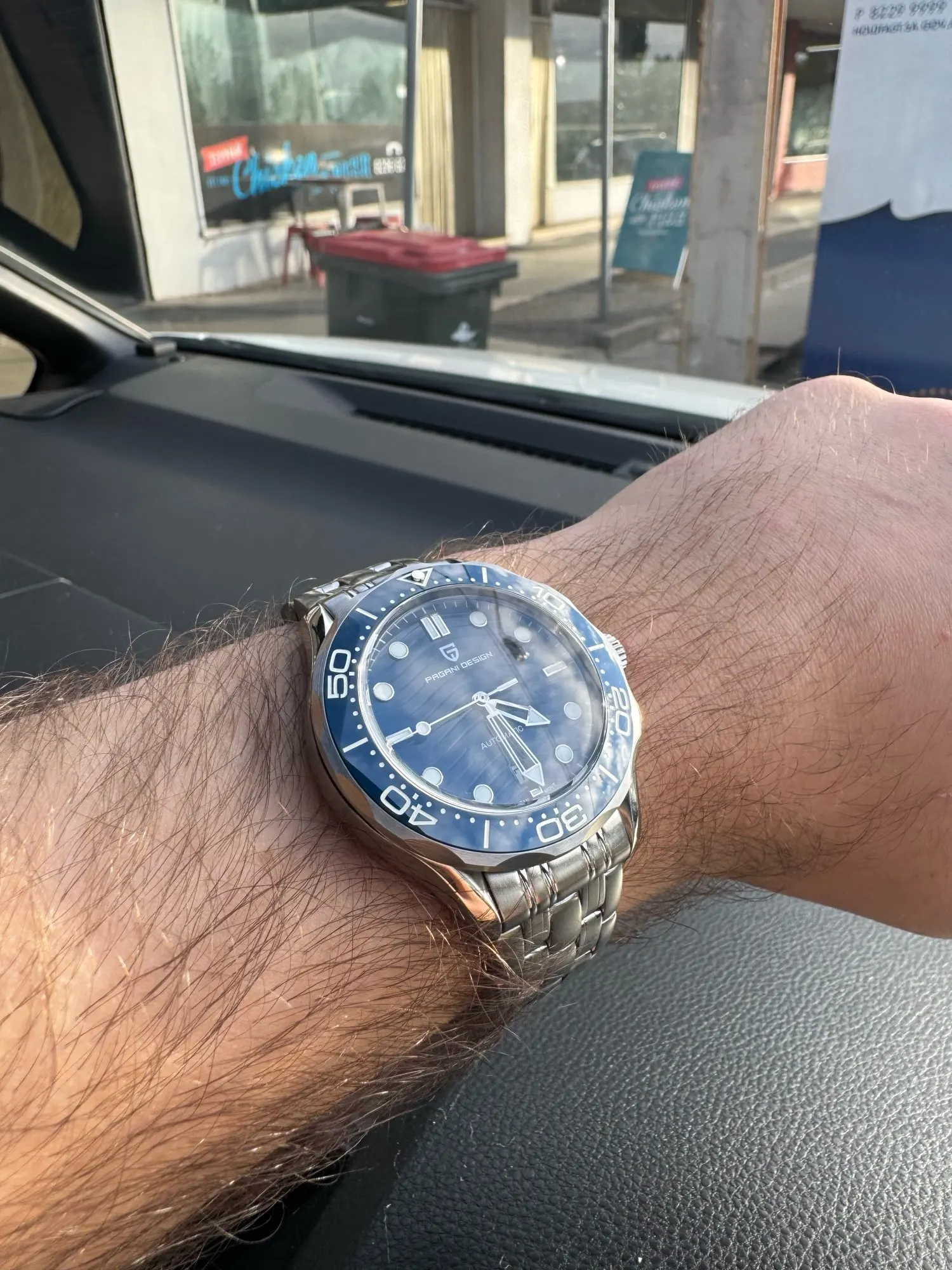

Blue steel: Standard deep blue on steel bracelet — the most widely appealing classic diver combination.

Black steel: Matte black dial on steel bracelet. The most assertive configuration.

Green steel: Green dial on steel bracelet — the most distinctive bracelet variant. Green diver dials are specifically collected at this price point.

Strap Variants

Blue/grey, blue/white, blue, black: The same dial colours on rubber or leather strap rather than bracelet — lighter wearing weight and more casual character.

Two-Tone Rose Gold

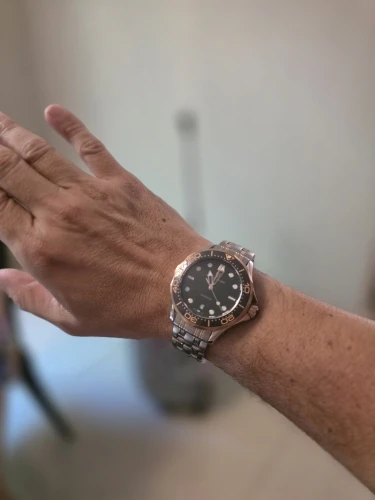

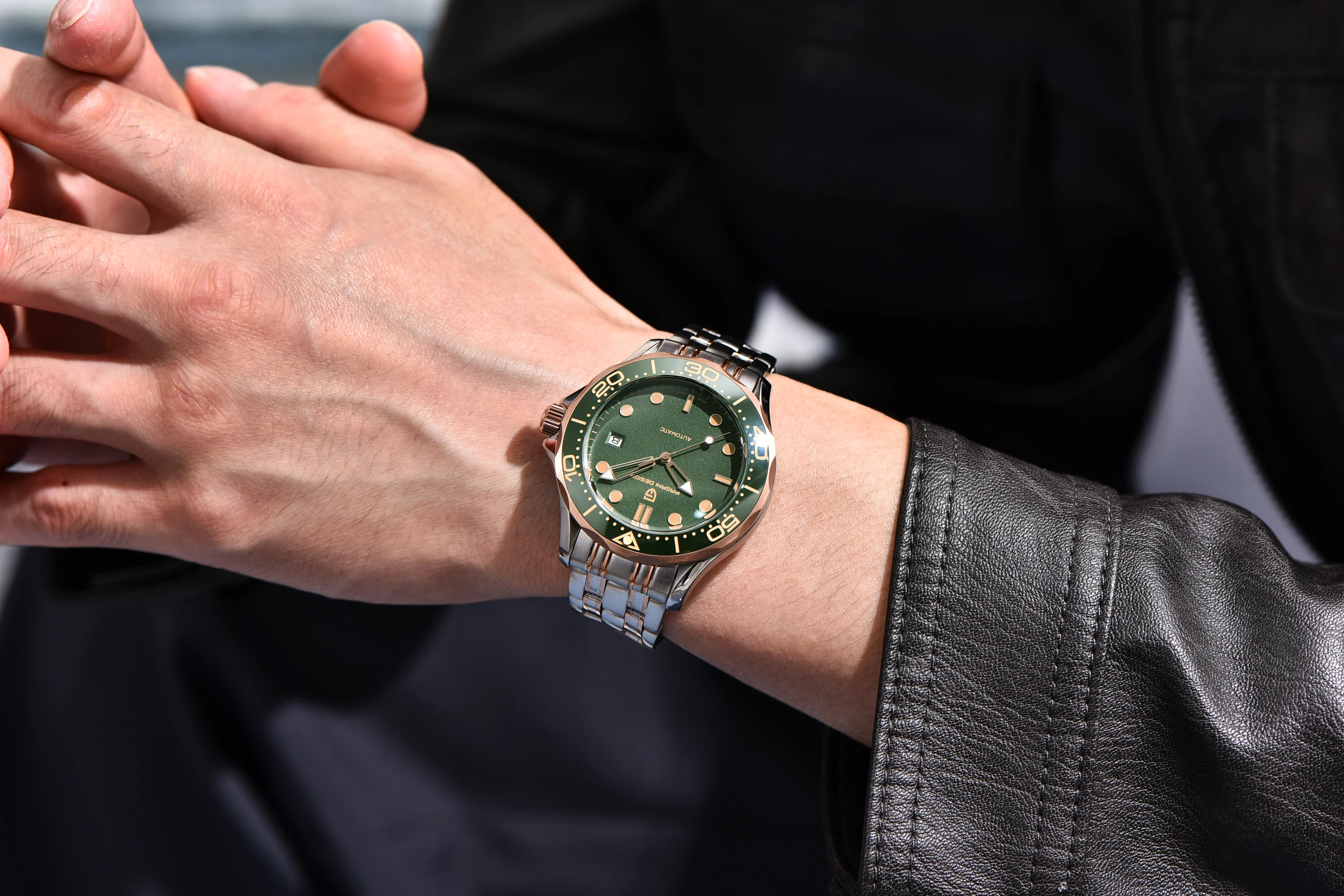

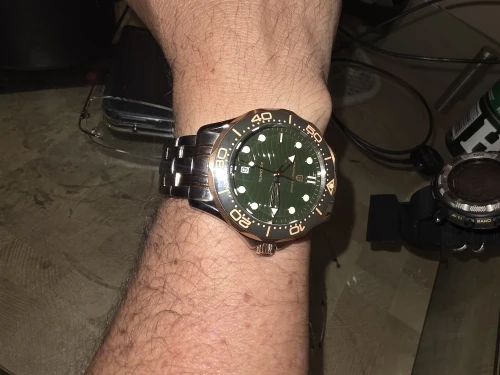

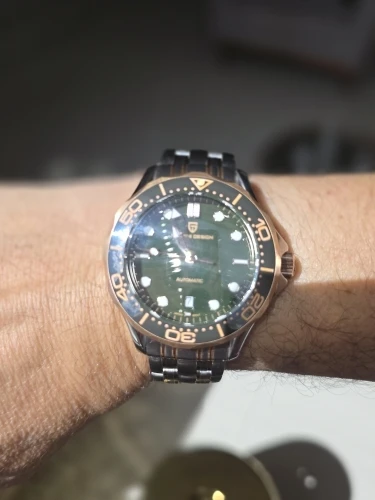

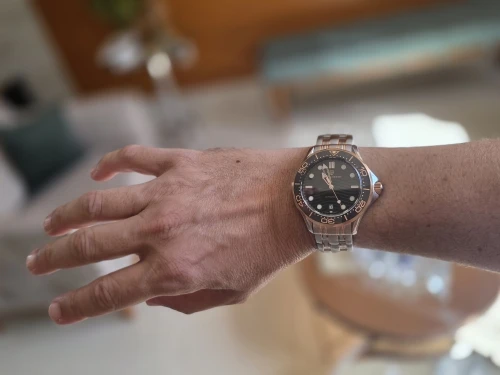

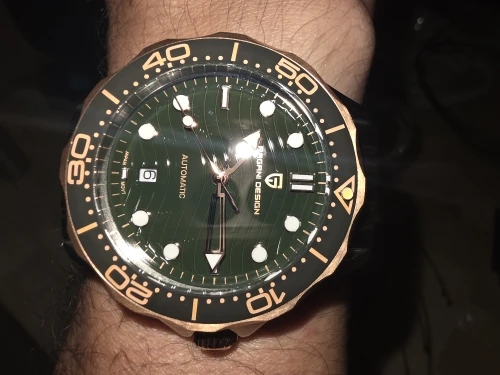

Rose gold/green and rose gold/green 2: Green dial with rose gold-tone case hardware and bracelet. The rose gold two-tone against a green dial is the most visually distinctive configuration in the twelve-variant range — warm rose gold and cool green create a colour pairing uncommon in the affordable diver category. Two versions available with slightly different dial details.

The Wave-Pattern Dial

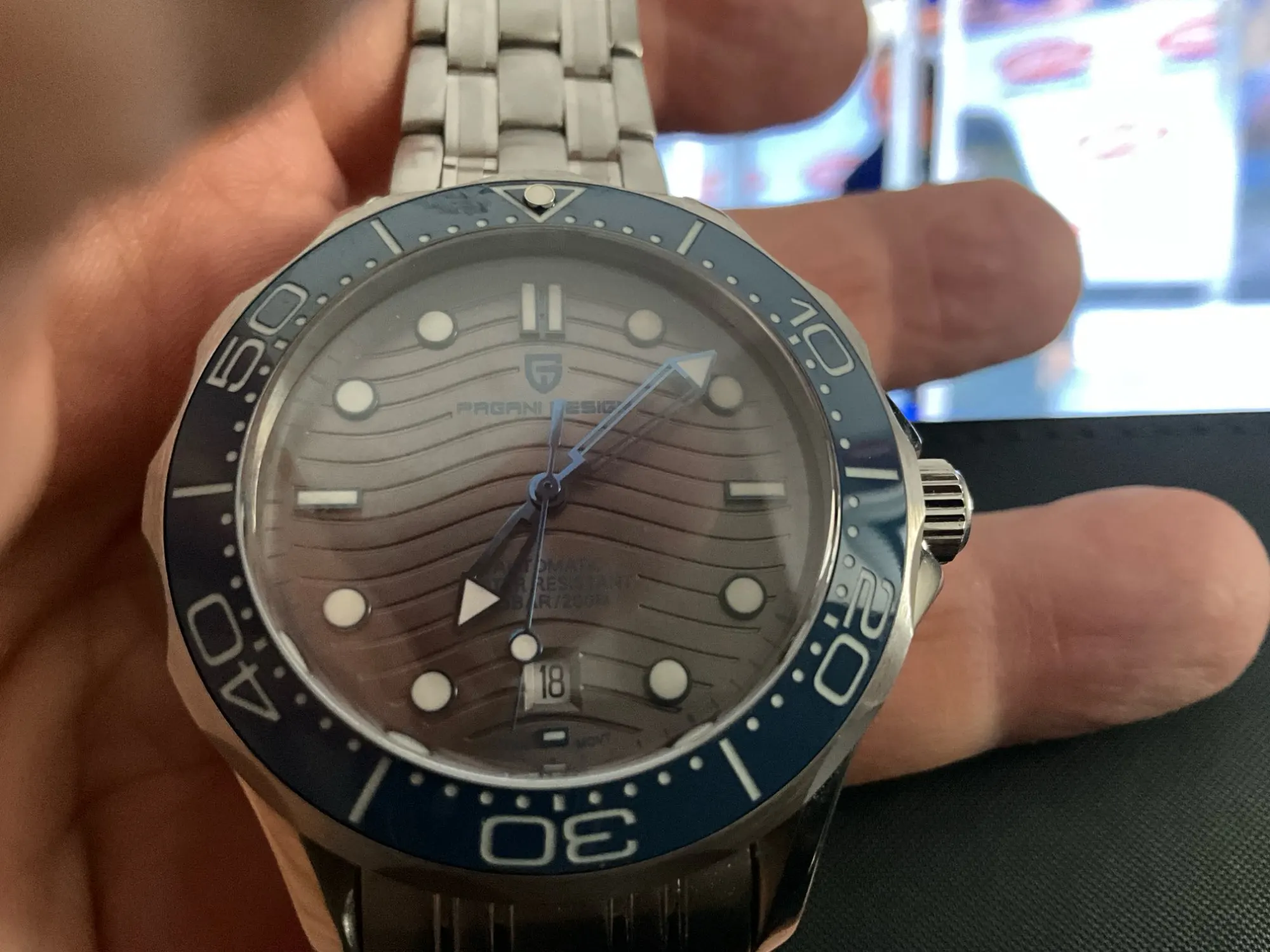

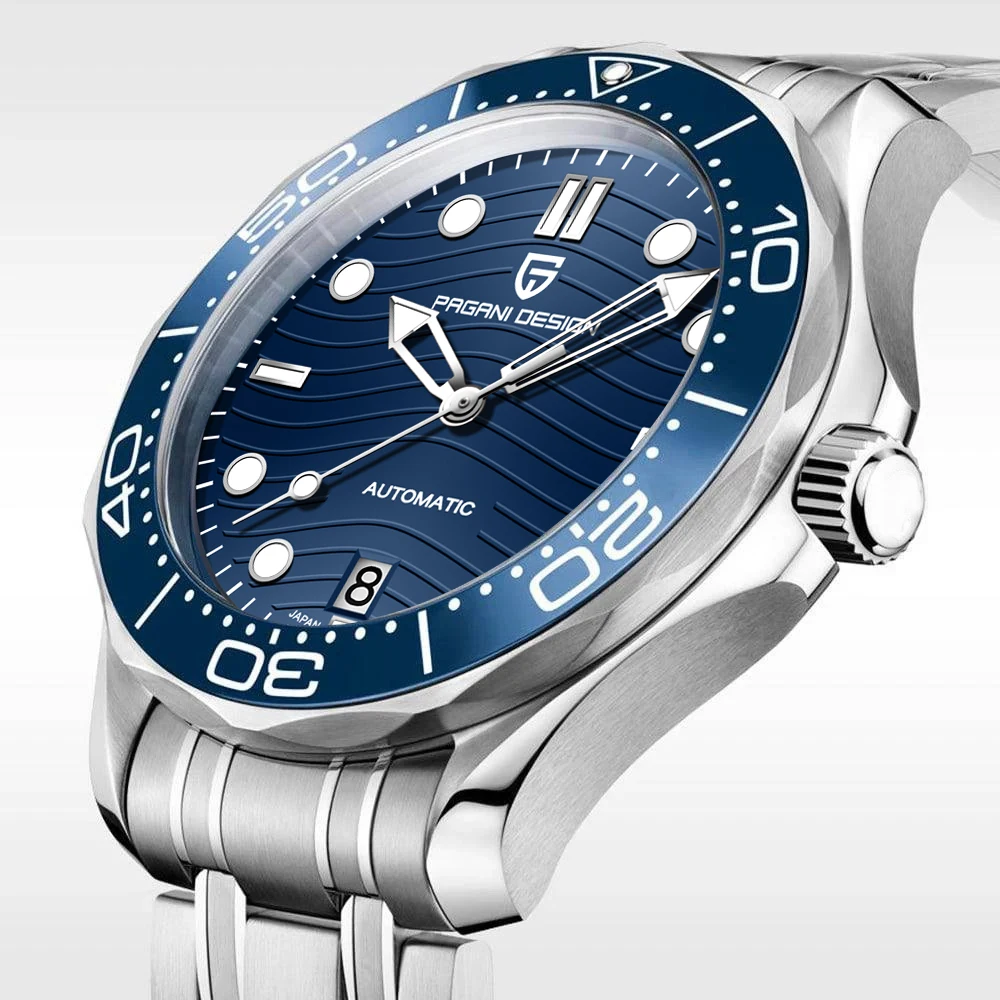

The embossed horizontal wave texture is machined or pressed into the dial surface — a repeating pattern of fine parallel waves running across the face. The embossed structure is three-dimensional: each wave ridge catches and reflects ambient light along its length while the adjacent trough creates a micro-shadow. As the wrist angle changes, different facets of the wave pattern face toward the light source, creating a continuously shifting shimmer across the dial.

The date window at 6 o’clock sits within the wave-pattern field. The positioning at 6 rather than the standard 3 o’clock creates a symmetrical dial layout with the date balanced at the bottom axis rather than interrupting the right side of the dial.

Synthetic Sapphire Crystal

The crystal is synthetic sapphire produced via the Verneuil (flame fusion) process — the standard production method for synthetic sapphire crystals. Raw aluminium oxide is melted using an oxyhydrogen flame and crystallised as it cools, forming a sapphire boule that is then cut and shaped into watch crystals. The resulting material is chemically identical to natural sapphire — the same Mohs 9 hardness and scratch resistance — at production quantities appropriate for watch manufacture.

The AR coating on the crystal reduces reflective glare, keeping the dial visible under direct overhead lighting.

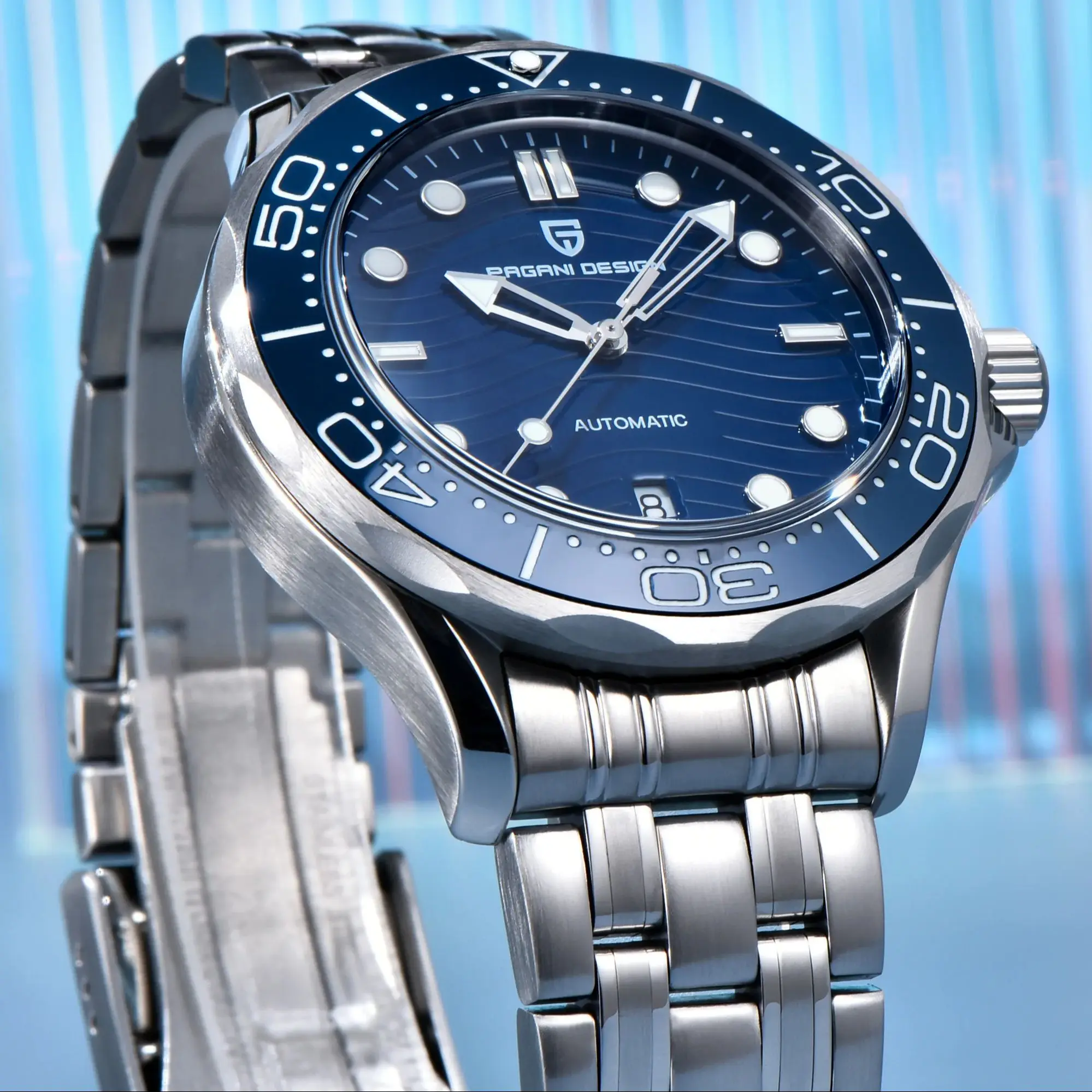

Ceramic Bezel

Ceramic is an inorganic, non-metallic material produced by high-temperature firing. The key properties for a watch bezel: hardness significantly greater than stainless steel (approximately 1,200–1,400HV vs steel’s 200–300HV), resistance to colour fading under UV exposure, chemical inertness and non-magnetic character. The ceramic insert maintains its colour and surface markings through extended daily wear and marine environment exposure in a way that aluminium bezels cannot.

The bezel rotates unidirectionally — counterclockwise only — as the standard dive safety specification.

Miyota 8215 — 48-Hour Power Reserve

The Miyota 8215 self-winds through wrist motion. The 48-hour power reserve is longer than the ~40 hours typical of many automatic calibers — two full days off the wrist from full wind. For initial use, wind the crown approximately 20 revolutions to establish the mainspring tension before relying on automatic winding.

The 8215 does not hack — the seconds hand continues running when the crown is pulled. Manual winding is supported via the crown.

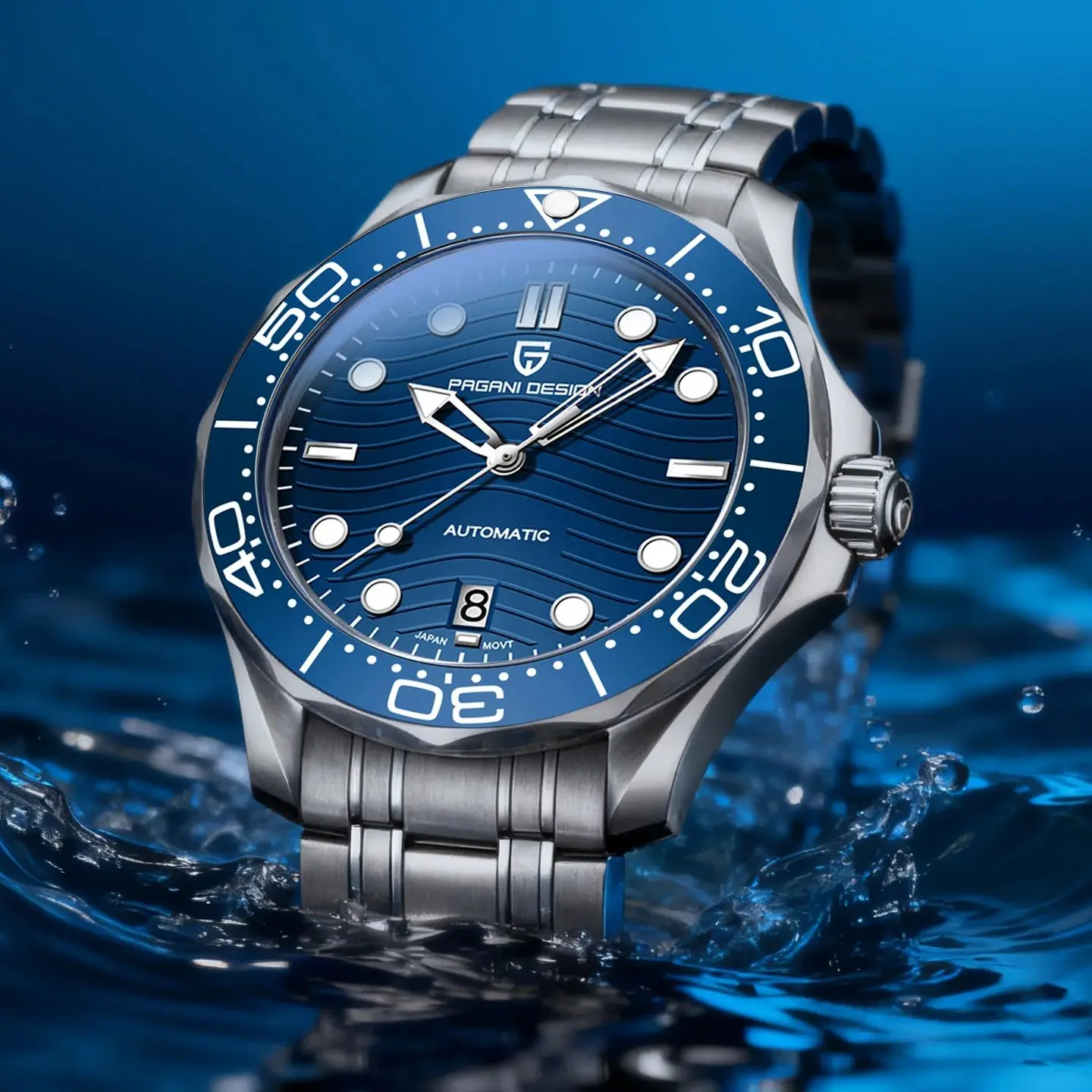

200m Water Resistance

200m / 20 ATM with screw-down crown handles recreational swimming, snorkelling and recreational diving. Not recommended for hot spring water or saunas — thermal shock affects gasket integrity regardless of depth rating.

How It Compares in the Pagani Design Range

vs. Pagani Design PD-1703 Pilot Chrono — The PD-1703 is a pilot chronograph. The PD-1685 is the automatic diver. Different function entirely — choose based on whether chronograph or dive watch is the priority.

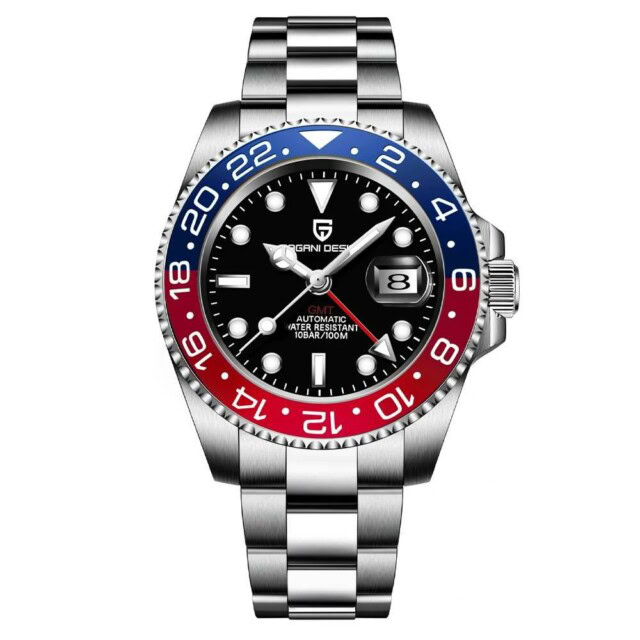

vs. Pagani Design PD-1784 GMT — The PD-1784 adds GMT second time zone. The PD-1685 is the simpler time-only diver for buyers who don’t need GMT.

vs. Pagani Design PD-1661 — The PD-1661 is 40mm with NH35 or 8215 choice and 100m. The PD-1685 is 42mm with 8215 and 200m. Choose by size and water resistance preference.

vs. Phylida Blue Wave SE-11 — Both 200m divers with wave-pattern dials and Miyota 8215. The Phylida is 41mm with 120-click ceramic bezel; the PD-1685 is 42mm with standard ceramic bezel. Compare both for the specific wave dial aesthetic at 200m.

Who Is the PD-1685 V2 For?

The PD-1685 V2 is built for:

• Buyers who want the wave-pattern embossed dial as a specific aesthetic — the tactile texture and shifting shimmer is the primary design reason to choose this over a flat dial diver
• Rose gold/green two-tone buyers who want a distinctive warm/cool colour combination not found in most affordable divers
• 42mm diver buyers who want ceramic bezel and 200m with the Miyota 8215’s 48-hour power reserve
• Green dial buyers who want the steel bracelet variant
