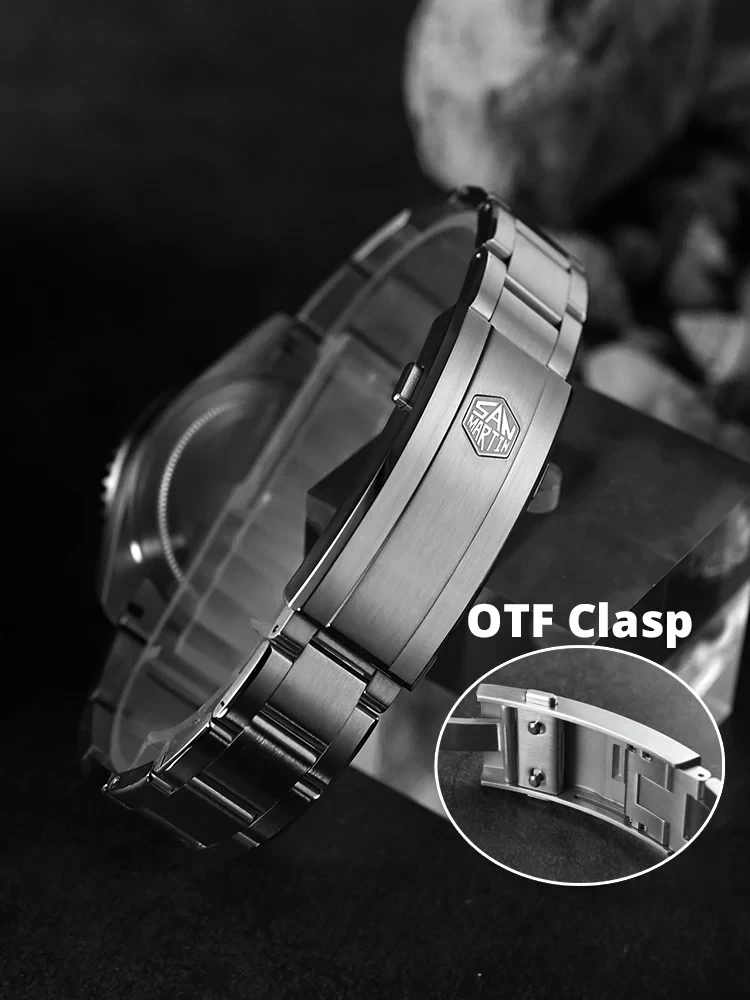

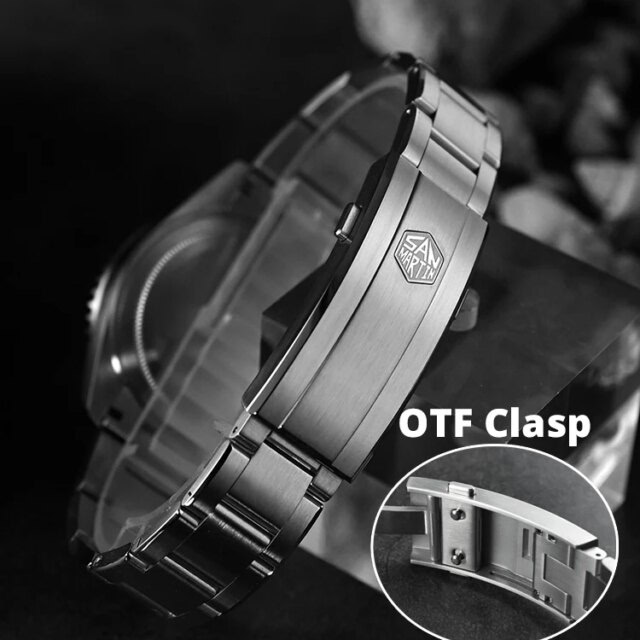

The San Martin SN0126 is a 38mm Miyota 90S5 automatic dive watch at 11.7mm total case thickness — a 200m-rated ceramic bezel diver in one of the thinnest and most compact case profiles available at this specification level. Three-dimensional wave texture dial in four colour configurations, 120-click unidirectional ceramic bezel, sapphire crystal with AR coating, BGW9 blue lume, GS Crafts broad sword hands, solid steel bracelet with fly-adjust clasp.

Key Specifications

Variants — Four Wave Dial Configurations

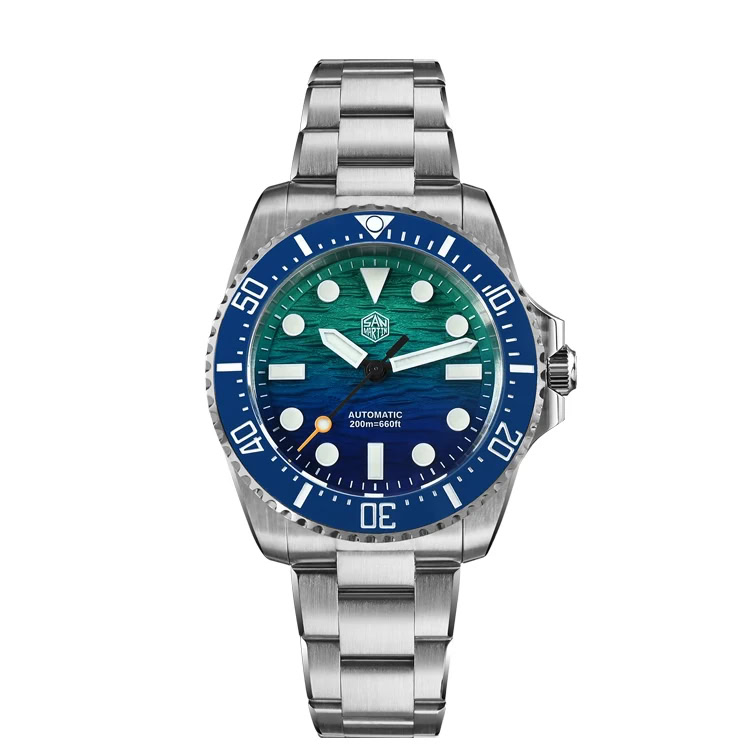

Blue-black wave: A deep blue gradient wave dial with black accents — the most widely appealing combination. The blue wave texture shifts from deep navy at the outer edge toward lighter blue-black toward the centre.

Green-black wave: A deep green wave dial with black accents. Green ceramic bezel divers are specifically collected — the wave texture adds depth to the green gradient.

Light blue-blue wave: A lighter, brighter blue with deeper blue accents — a more vibrant, contemporary reading of the wave pattern compared to the deep navy blue-black variant.

Black wave: A matte or dark black wave dial — the highest contrast and most assertive configuration. The wave texture is visible as a subtle three-dimensional pattern against the dark field.

Miyota 90S5 — What It Is and Why It Matters Here

The Miyota 90S5 is the high-specification tier of the Miyota 9000 series — distinct from the standard 9015 used in the SN0148 and SN0150. The 90S5 runs at 28,800 vph with hacking and hand-winding, 24 jewels, ~42-hour power reserve. It is used in the Carnival IW 527 Moon Phase and is one of the more capable Miyota calibers available in the affordable automatic range.

At 28,800 vph the seconds sweep is smooth — 8 ticks per second rather than the 6 of standard 21,600 vph movements like the NH35. For buyers comparing sweep quality between movements, the 90S5 and 9015 are equivalent in this regard; both run at 28,800 vph.

The 90S5’s ultra-thin architecture is what enables the 11.7mm total case height — a full-specification 200m ceramic bezel diver at this profile thickness requires a movement that does not add height to the case.

11.7mm at 200m — Profile Comparison

For context within the San Martin range reviewed at Jewelry Addicts:

The SN0126 at 11.7mm / 38mm occupies the compact end of the range. Only the SN0148 is thinner (11.4mm) in the 200m category. For buyers who want 200m capability in the smallest and slimmest available format, the SN0126 and SN0148 are the correct choices — differing by dial type (wave vs spiral vortex) and movement (90S5 vs 9015).

3D Wave Texture Dial

The wave texture dial uses a three-dimensional sculpted surface — raised and recessed elements forming a wave pattern across the dial face. Unlike the SN0129’s desert/sand dune texture (irregular organic ripple pattern) or the SN0148’s spiral vortex (radial rotating pattern), the SN0126’s wave pattern is a directional, flowing wave form.

The gradient colour treatment deepens the texture’s visual character — the colour transitions from darker at the outer dial edge toward lighter at the centre, with the wave pattern creating consistent directional flow across the gradient. The applied polished indices and GS Crafts broad sword hands sit above the textured surface, maintaining legibility over the complex dial background.

GS Crafts Broad Sword Hands

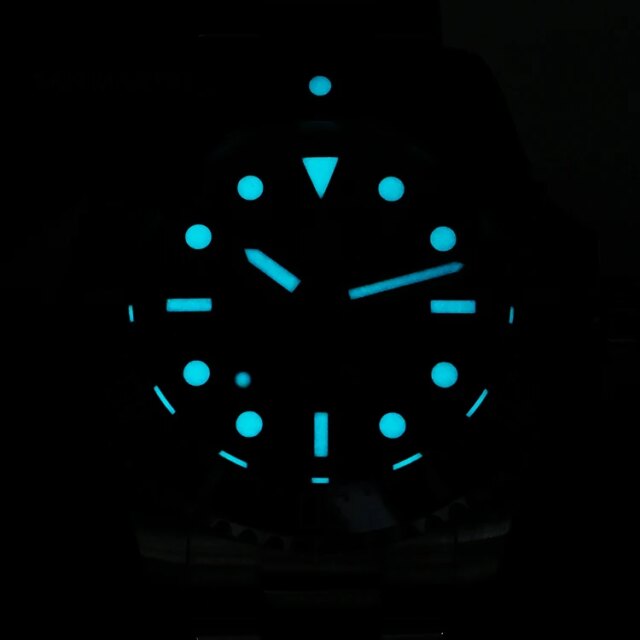

The GS Crafts designation refers to San Martin’s Grand Seiko-inspired hand finishing — flat polished facets on the hand surfaces creating a mirror-bright hand body with defined angular profiles. The broad sword hand shape maximises the lume surface area on the hour and minute hands while presenting a clean, wide profile on the dial face. Under direct light the polished facets create bright reflections; the lume fill provides the BGW9 blue glow in low light.

38mm Case — Wrist Fit

At 38mm with 46.5mm lug-to-lug the SN0126 suits wrists from approximately 15.5cm upward. Below 17cm the 38mm case fits proportionally without overhang; at 17–18.5cm the watch wears as a compact diver; above 18.5cm buyers who prefer larger proportions may find 38mm visually modest.

The 11.7mm case height means the watch does not protrude significantly from the wrist — it sits closer to flat than most 200m divers, which enables wearing under jacket cuffs and in formal contexts alongside dive-capable use.

Who Is the San Martin SN0126 For?

The SN0126 is built for:

• 38mm compact diver buyers who want 200m ceramic bezel specification in the smallest available San Martin diver format
• Slim profile diver buyers who need a 200m watch at under 12mm case height for formal and business wear compatibility
• Wave dial buyers who want the directional flowing wave texture pattern — different from the desert texture SN0129 and spiral vortex SN0148
• Green or light blue diver buyers who want the wave texture in those specific colour combinations at 38mm

How It Compares

vs. San Martin SN0148 — The SN0148 is 37.5mm or 40mm at 11.4mm with Miyota 9015 and spiral vortex dial. The SN0126 is 38mm at 11.7mm with Miyota 90S5 and wave dial. Both are ultra-slim 200m Miyota divers — 0.3mm thickness difference, different dial textures. Choose by dial pattern preference.

vs. San Martin SN0017 — The SN0017 is 40mm at 200m with PT5000 or NH35 and enamel or sunray dial. The SN0126 is 38mm with 90S5 and wave texture dial — 2mm smaller case, similar thickness range.

vs. Hruodland F029 — The F029 is 36mm at 200m with NH38 at a lower price. The SN0126 is 38mm at 200m with Miyota 90S5 and ceramic bezel at higher specification. Both are compact 200m divers for smaller wrists.
