Carnival IW 563 Automatic Watch — NH36A, Tungsten Bezel, Sapphire, 100m

Carnival IW 563 Automatic Watch — NH36A, Tungsten Bezel, Sapphire, 100m

The Carnival IW 563 is a 41mm automatic dress-sport watch powered by the Seiko NH36A — a 24-jewel Japanese automatic with day-date display, hacking seconds and hand-winding — in a 316L stainless steel case with a tungsten steel bezel. The defining features are the tungsten bezel (harder and heavier than standard stainless steel) and the waffle-pattern textured dial, which creates a grid-relief surface that catches light differently from flat printed dials.

Available in five colour configurations: silver/black, silver/grey, silver/gold/white, silver/white and silver/gold/blue. 100m water resistance with screw-down crown and caseback. Sapphire crystal with AR coating. Three-link brushed and polished stainless steel bracelet with push-button butterfly clasp.

Key Specifications

Variants — Five Colour Configurations

Silver/Black: Black waffle-pattern dial with silver case and bracelet. The highest-contrast configuration — black dial against polished and brushed silver steel. The red-accent seconds hand creates a three-colour face (black / silver / red) that is particularly visible in photos. The most assertive configuration of the five.

Silver/Grey: A grey-silver textured dial with matching silver case. The most understated of the five variants — a tonal combination where dial and case read as a continuous grey-silver palette. Works cleanly across business and casual contexts without drawing visual attention to itself.

Silver/Gold/White: A white or cream dial with gold-tone accents on the indices and hands, paired with silver case hardware. The warmest-toned combination — the gold accent adds formality and pairs naturally with warm-coloured clothing and tan leather accessories.

Silver/White: Clean white waffle dial with all-silver hardware. The most versatile and legible configuration — maximum contrast between white dial and silver hands, clean across all lighting conditions. The correct choice for buyers who want maximum legibility and tonal neutrality.

Silver/Gold/Blue: A distinctive configuration with blue dial elements and gold-tone accents. The blue and gold combination is the most visually distinctive of the five — warm gold against cool blue creates contrast that the other variants do not have. The collector-oriented choice for buyers who want something with more design character.

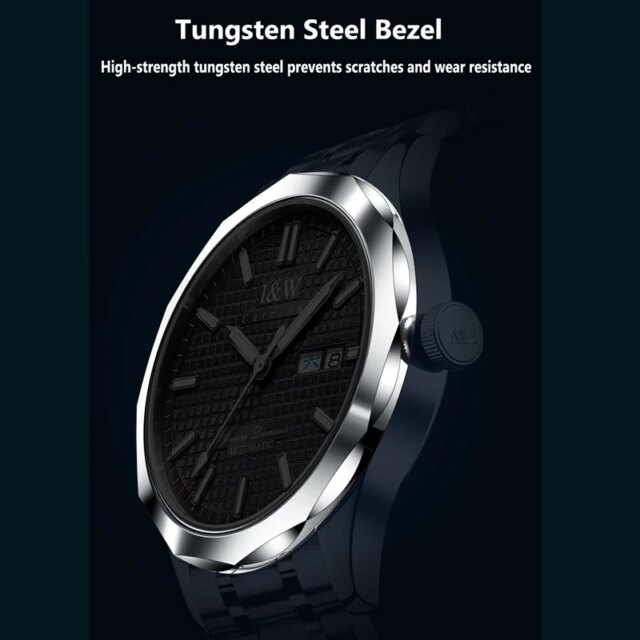

The Tungsten Steel Bezel

The IW 563’s bezel is tungsten steel — a heavy, extremely hard material rarely used in watches at this price level. Tungsten carbide rates approximately 9 on the Mohs hardness scale, close to sapphire, and significantly harder than the 316L stainless steel used for the case. In practice this means the bezel maintains its surface finish and polished appearance under the contact wear that causes standard steel bezels to develop micro-scratches over time.

Tungsten’s density is also notably higher than steel — approximately 15.6 g/cm³ vs steel’s 7.9 g/cm³ — which contributes to the IW 563’s 180g total weight. On the wrist, this creates a solid, substantial presence that lighter watches do not replicate.

Waffle-Pattern Dial

The waffle pattern is a repeating grid of fine embossed squares machined or printed across the dial surface. Unlike a flat lacquered or printed dial, the raised grid creates micro-shadows at each ridge under raking light — the dial reads differently as the viewing angle and light source change. In direct overhead light the texture is subtle; in warm side-lighting or at an angle it creates depth that flat dials cannot.

No numerals — the IW 563 uses applied polished indices at each hour position, keeping the waffle texture uninterrupted around the dial. The absence of numerals is consistent with the watch’s dress-sport character: legible, but not militaristic or field-watch functional in presentation.

Movement — Seiko NH36A

The Seiko NH36A is manufactured by Seiko Instruments Inc. in Japan. It is a no-date companion to the NH35A — the date and day display version — with the same 24-jewel architecture, 21,600 vph beat rate and 41-hour power reserve.

Wait — the specifications state “Day-Date at 3 o’clock.” The NH36A is a day-date movement (day + date simultaneously displayed), which is confirmed by the dual calendar complication shown in the product specs. This is correct.

NH36A key features:

• Day display (weekday in text) + date display at 3 o’clock
• Hacking — seconds stop when the crown is fully pulled, allowing precise time-setting to the second
• Hand-winding — the crown can be used to manually wind the mainspring, useful when the watch has been unworn and the power reserve is depleted
• 41-hour power reserve — sufficient for a weekend off the wrist without fully depleting

The NH36A is the same movement architecture used in the Carnival range across multiple models and is one of the most globally serviceable Japanese automatic calibers — any watchmaker familiar with Seiko movements can service it.

Sapphire Crystal

The sapphire crystal rates 9 on the Mohs hardness scale — harder than most materials encountered in daily wear, including metals, ceramics and glass. Standard mineral crystals rate 5–6 and develop visible scratches from daily contact within months. Sapphire does not scratch under normal use conditions. The AR coating on the inner surface reduces reflective glare, keeping the dial clearly visible in bright overhead light.

100m Water Resistance

The screw-down crown and reinforced caseback contribute to the 100m water resistance rating. At 100m / 10 ATM the IW 563 handles swimming and snorkelling without concern. It is not rated for scuba diving with compressed gas equipment. For reference: 100m is a common recreational swim rating; 200m is the scuba standard. For daily wear including regular hand-washing and rain, 100m provides substantial excess margin.

How It Compares Within the Carnival Range

vs. Carnival 8017 Bauhaus — The Carnival 8017 uses a Bauhaus design philosophy — absolute minimalism, no surface decoration. The IW 563 adds the waffle-pattern dial texture and tungsten bezel as design elements. Choose the 8017 for pure minimalism; the IW 563 for a textured, more visually substantial automatic.

vs. Carnival 1986 — The Carnival 1986 is the Carnival range’s flagship round-case automatic with stronger brand recognition. The IW 563 offers a more contemporary character with the waffle dial and tungsten bezel as differentiating features.

vs. Carnival I711G Business Watch — The I711G uses Miyota 8215 in a round case at 50m. The IW 563 is the step up in movement (NH36A with hacking and day-date), water resistance (100m), bezel specification (tungsten) and dial character (waffle pattern).

vs. Carnival IW Luxury Series — The Carnival Luxury Series is the more formal high-end option in the Carnival range. The IW 563 is the dress-sport middle tier — more daily-wear practical than the luxury formal pieces.

vs. Carnival 8880G Tourbillon — The 8880G is Carnival’s tourbillon-style watch — a different mechanical category at a higher price. The IW 563 is the everyday automatic; the 8880G is the statement complication piece.

Who Is the Carnival IW 563 For?

The IW 563 is built for:

• Buyers who want the NH36A’s day-date complication with hacking in a dress-sport 41mm case
• Anyone who wants a tungsten bezel — the specification is genuinely unusual at this price and creates the hardest bezel surface in the Carnival range
• Daily wear buyers who need 100m water resistance on a textured-dial dress watch
• Collectors who want the waffle-pattern dial as a specific textural preference over flat dials
