Cadisen C8140 Ultra-Thin Open-Heart Watch — Miyota 90S5, 40mm, 9.5mm, Curved Sapphire

Cadisen C8140 Ultra-Thin Open-Heart Watch — Miyota 90S5, 40mm, 9.5mm, Curved Sapphire

The Cadisen C8140 is a 40mm automatic dress watch powered by the Miyota 90S5 — a 9000-series high-beat caliber significantly more refined than the entry-level Miyota 8215 — presenting an open-heart balance wheel aperture, curved single-dome sapphire crystal, exhibition caseback, genuine leather strap and 50m water resistance. At 9.5mm total thickness and 73g it is the slimmest and lightest automatic in the Cadisen range.

Available in blue dial only.

Key Specifications

The Miyota 90S5 — 9000 Series

The Miyota 90S5 is from Citizen’s Miyota 9000-series — a premium tier of automatic movements designed for slim, high-beat applications. The distinction from the Miyota 8215 used in the C8247 and TI-7:

Miyota 8215: 21,600 vph (6 beats/second), standard automatic architecture, ~40-hour reserve. The workhorse affordable automatic.

Miyota 90S5: 28,800 vph (8 beats/second), slimmer movement architecture, designed specifically for reduced case height. The seconds hand advances in 8 steps per second rather than 6 — producing a noticeably smoother sweep. The slim movement profile is what enables the 9.5mm case height.

The 9000-series is typically found in watches at significantly higher price points than the 8215. The C8140 at this price with a 9000-series movement is unusual within its category.

9.5mm Thickness — Context Within the Cadisen Range

At 9.5mm total thickness the C8140 is significantly slimmer than the C8247 (13mm) and the TI-7 Autodyne (11.5mm). In the context of the wider watch range reviewed here, 9.5mm with an open-heart aperture is competitive with the Carnival 8026G (8mm — thinner but smaller movement) and the Carnival 8017 Bauhaus (8mm automatic without open-heart).

For a 40mm watch with a mechanical open-heart display at 9.5mm, the C8140 is thin. The slim profile is directly enabled by the 90S5’s architecture — a standard automatic movement at this complication level would add 2–3mm of case height.

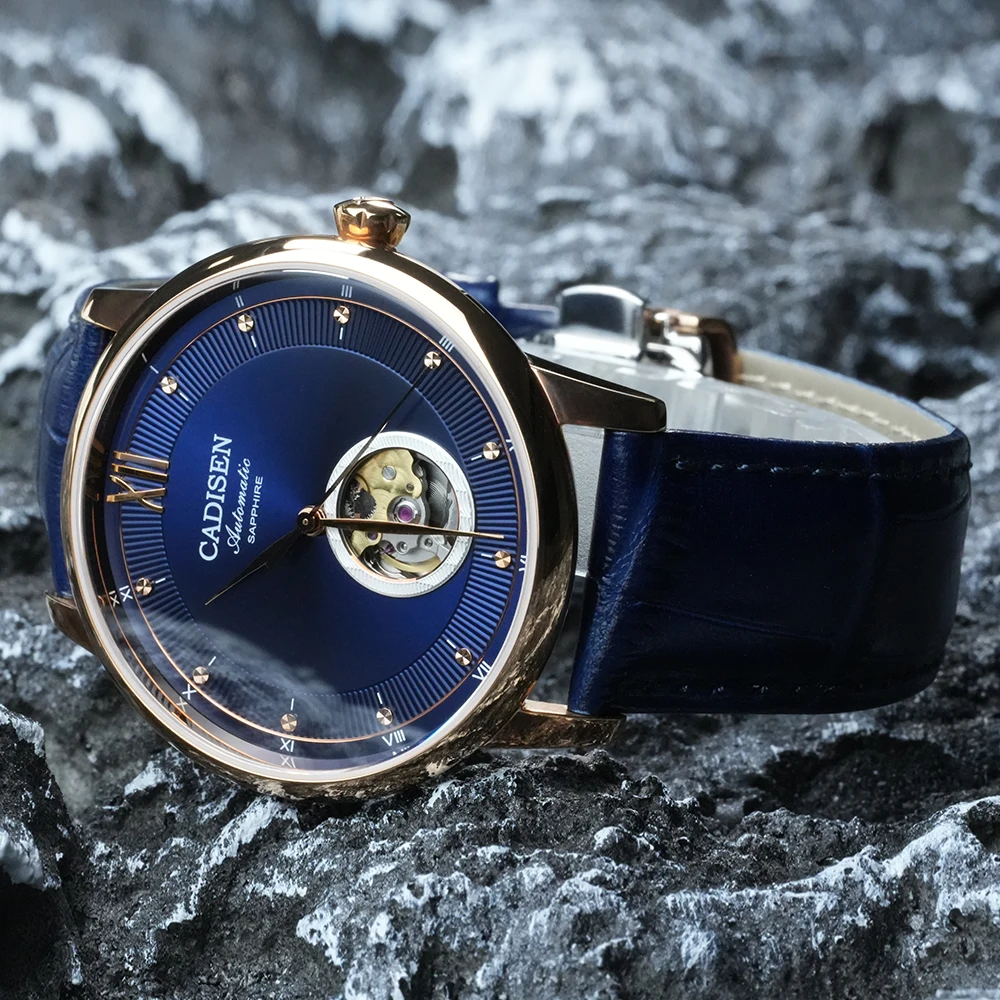

Open-Heart Balance Wheel Aperture

The dial aperture reveals the balance wheel — the oscillating element that determines the movement’s timekeeping. At 28,800 vph the balance wheel completes 8 oscillations per second, visually faster than an entry-level 21,600 vph movement. On an open-heart dial the higher beat rate produces more visible motion.

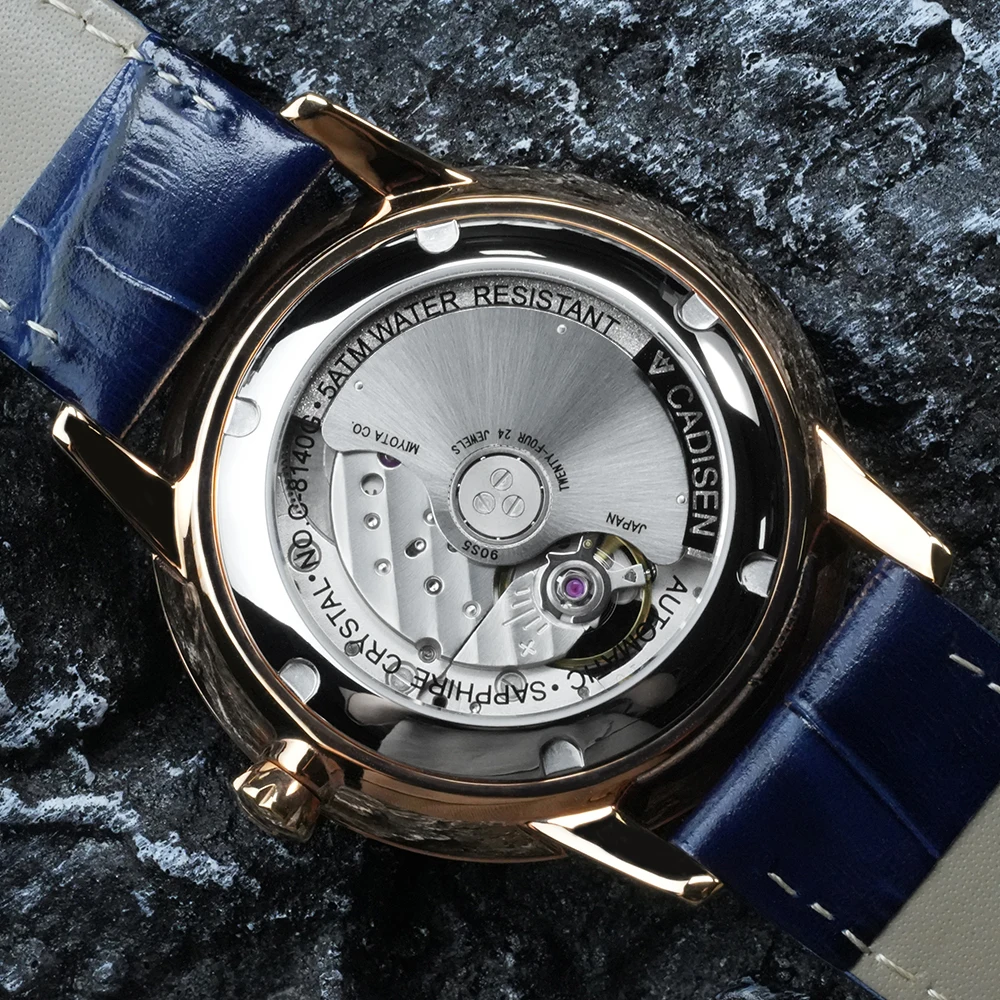

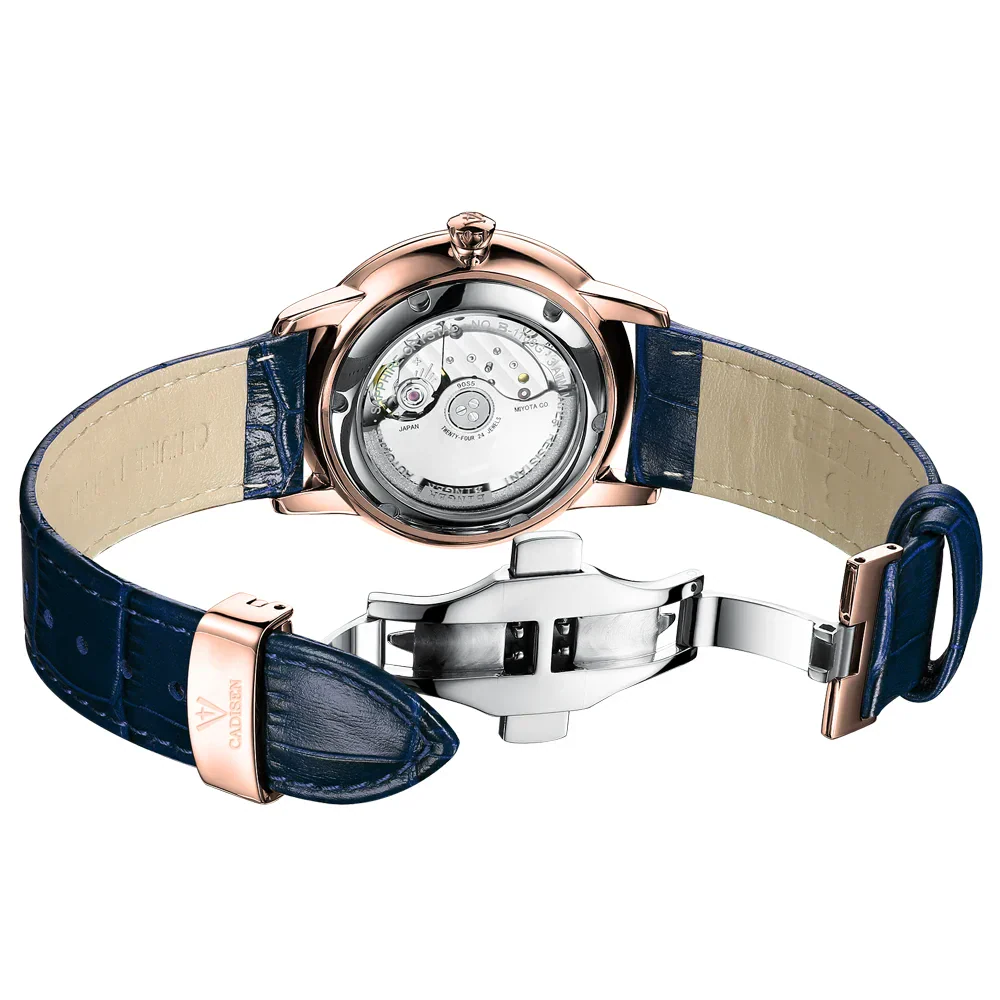

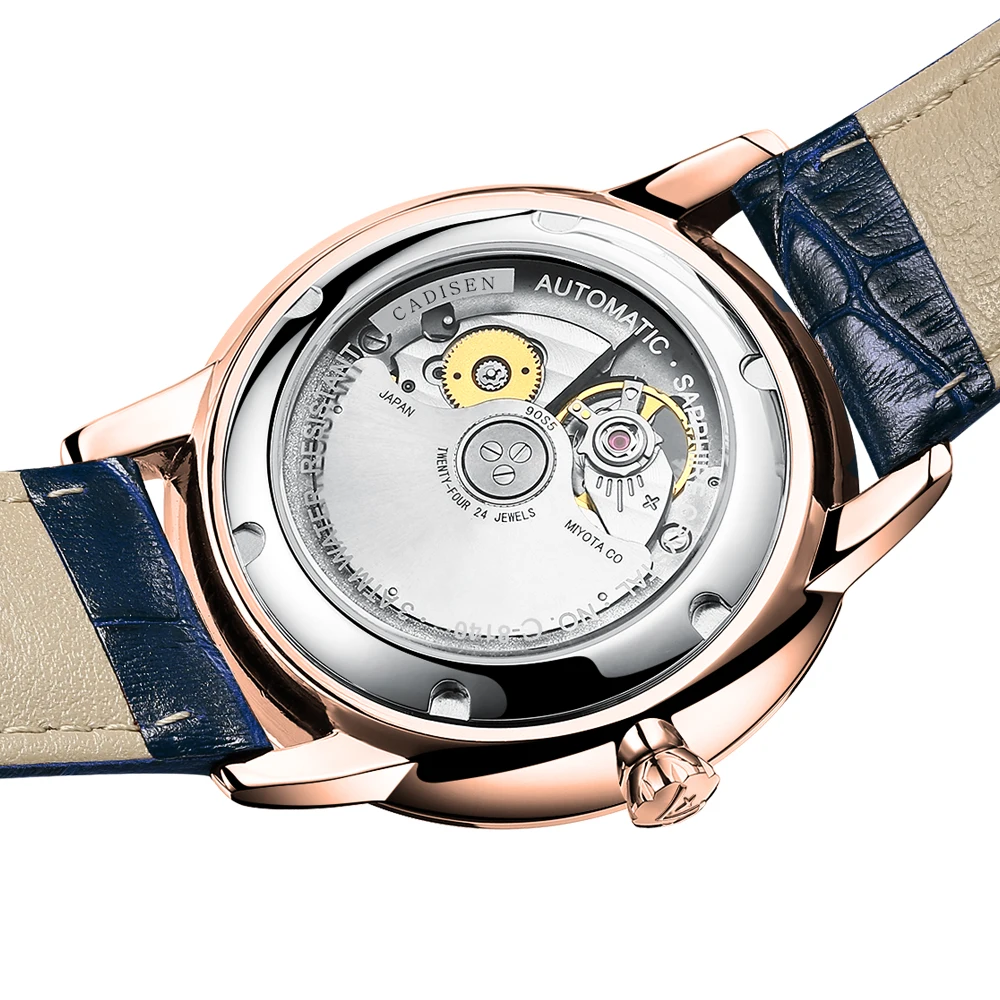

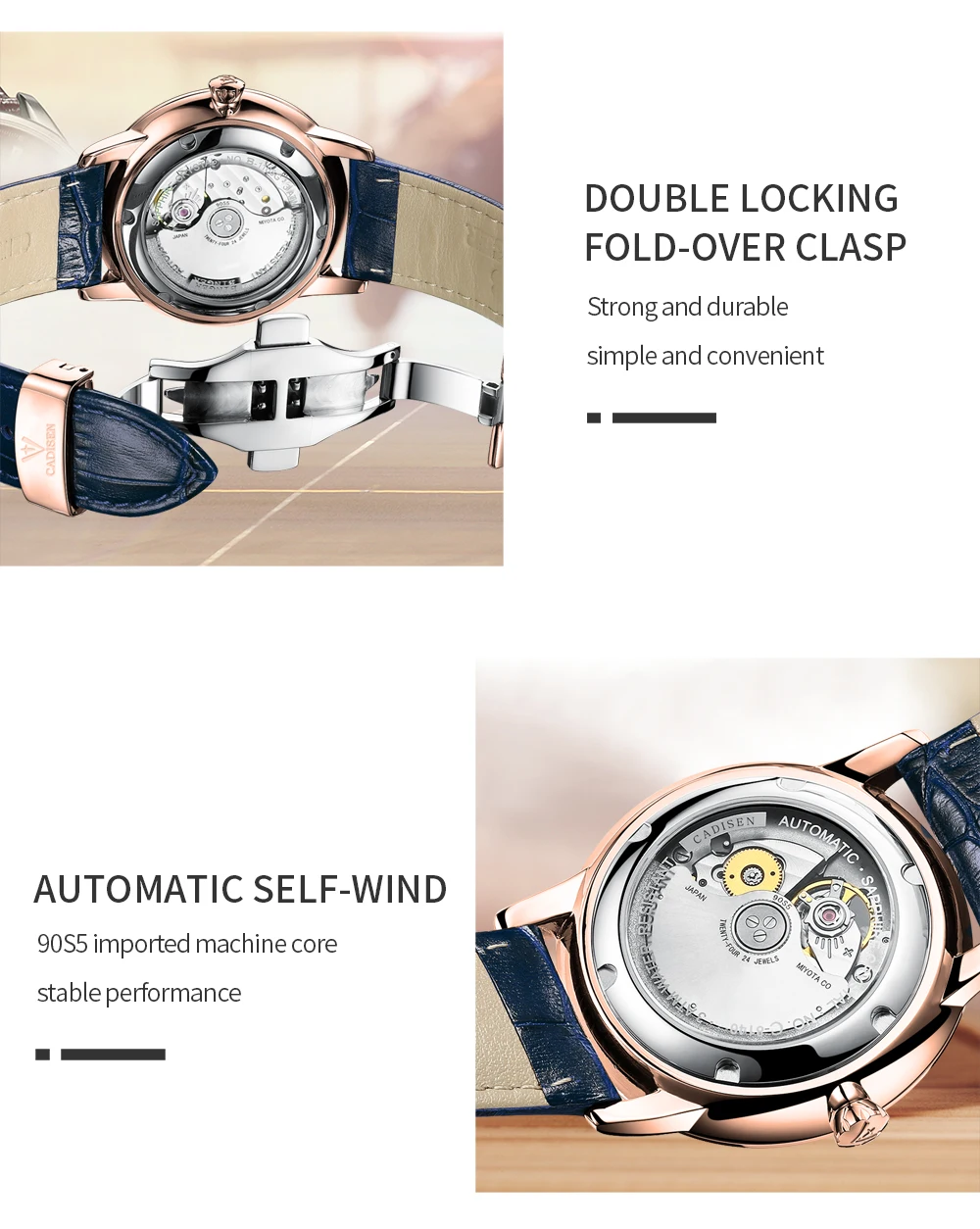

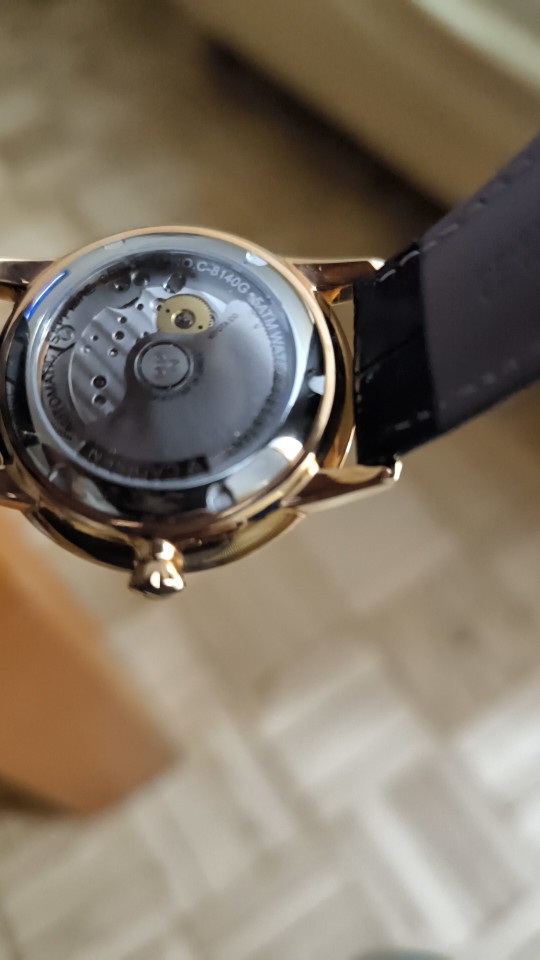

The exhibition caseback simultaneously shows the movement from the rear — both the front aperture and the rear window display different aspects of the same movement.

Curved Single-Dome Sapphire Crystal

The curved (domed) sapphire creates the characteristic lens effect of vintage dress watches — slight dial magnification and the reflection ring at the bezel edge. The single-dome (curved on the outer surface only) is appropriate for the slim 9.5mm case — a double-dome would add height. Sapphire provides full scratch resistance at Mohs 9 regardless of dome configuration.

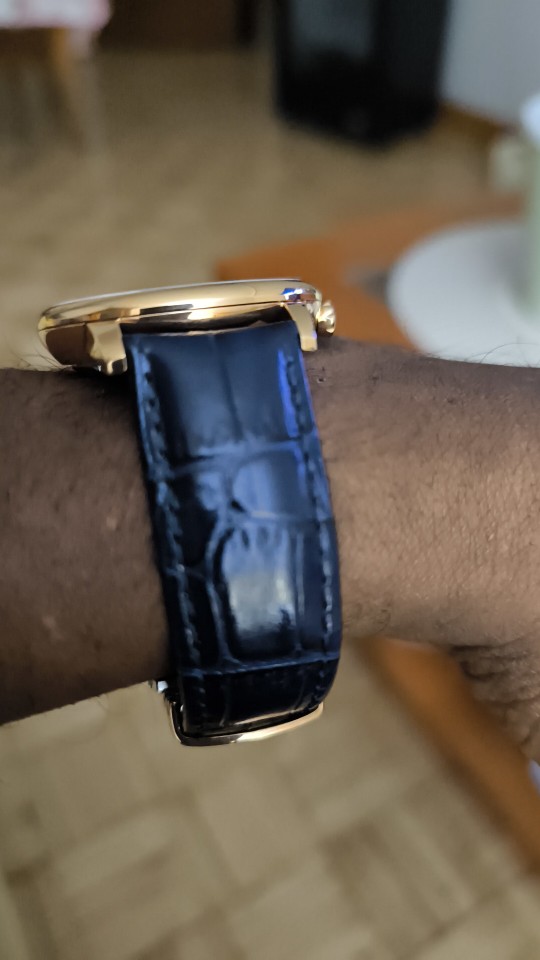

Leather Strap and 73g

The genuine leather strap keeps the total watch weight at 73g — the second-lightest automatic in the Cadisen range after the TI-7’s 58g. At 73g the C8140 is a light watch for all-day formal wear and disappears under a dress shirt cuff at 9.5mm.

The 20mm standard lug width is fully compatible with aftermarket straps.

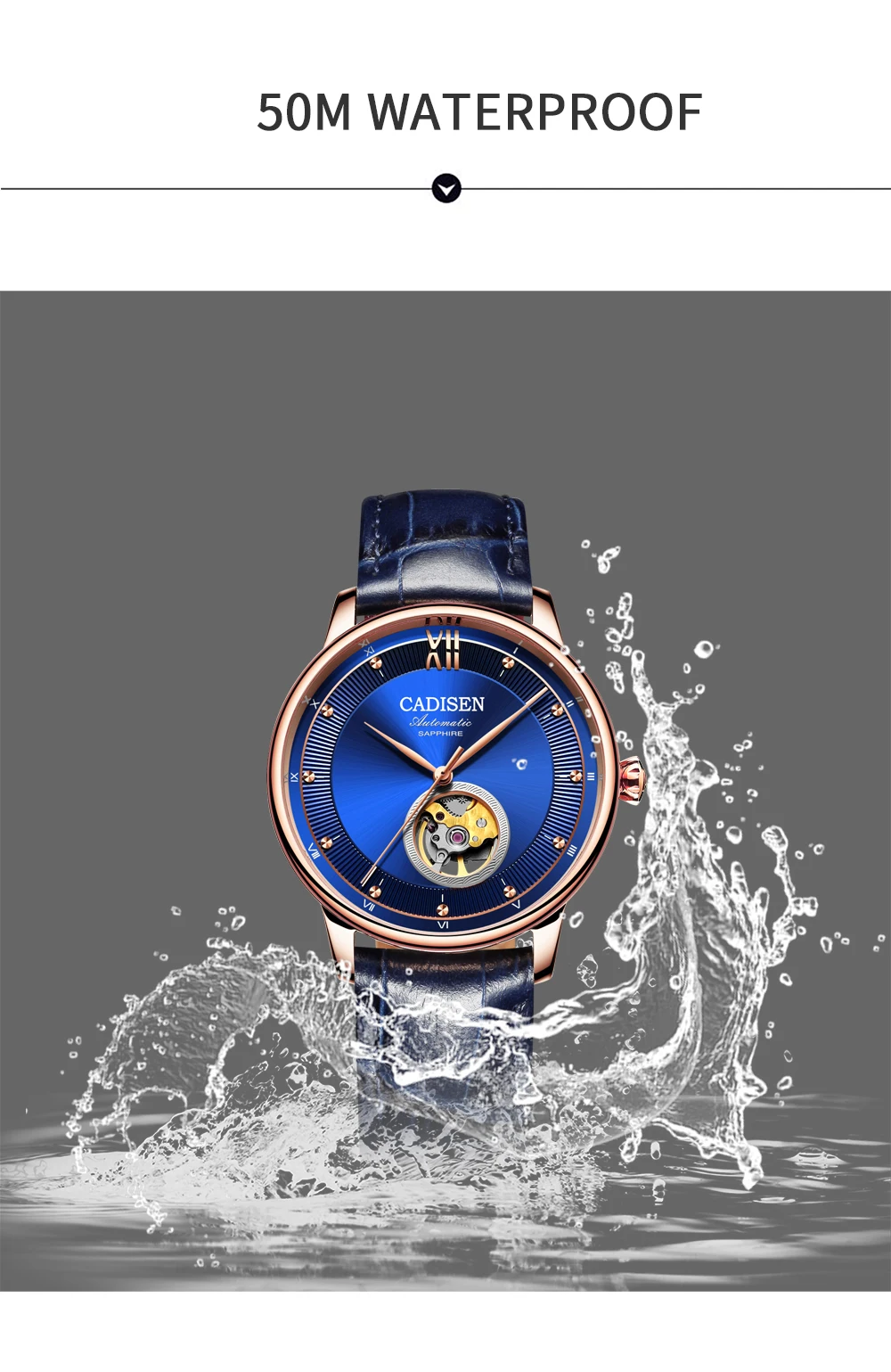

50m Water Resistance

50m / 5 ATM is appropriate for daily wear — rain, hand-washing and incidental water exposure. Not suitable for recreational swimming or shower use. The dress watch character of the C8140 is consistent with this water resistance depth.

How It Compares in the Cadisen Range

vs. Cadisen TI-7 Autodyne — The TI-7 uses Miyota 8215 in titanium at 58g / 11.5mm with sapphire. The C8140 is slimmer at 9.5mm with the 90S5 high-beat movement and open-heart aperture on leather. Choose TI-7 for titanium weight reduction; C8140 for the open-heart display and 90S5 movement.

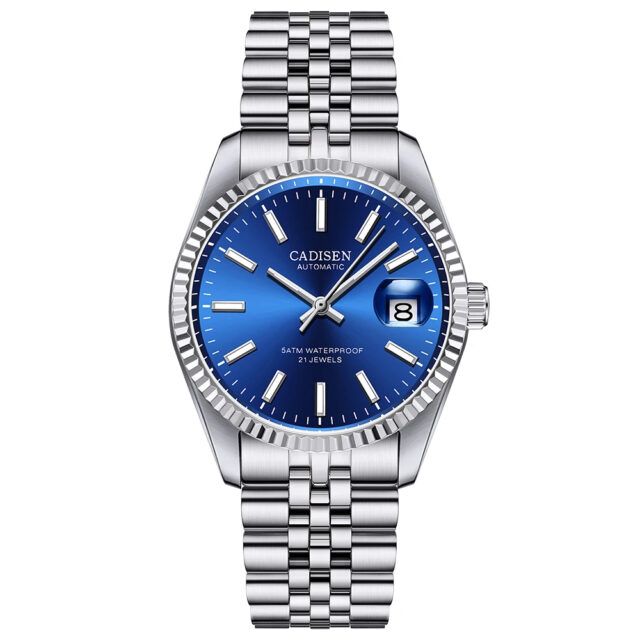

vs. Cadisen C8247 — The C8247 is 40mm / 13mm with Miyota 8215 and mineral glass at 145g on steel bracelet. The C8140 is 3.5mm slimmer with a superior movement, sapphire crystal and open-heart at less than half the weight.

vs. Carnival 8026G Hollow — The Carnival 8026G is 8mm with open-heart + 24-hour + small seconds at 40mm. The C8140 is 1.5mm thicker with the premium 90S5 movement rather than a generic Japanese automatic.

vs. Carnival 8017 Bauhaus — The 8017 Bauhaus is 8mm at 38mm, minimalist, no open-heart. The C8140 is the open-heart alternative at 9.5mm in the same slim-dress category.

Who Is the Cadisen C8140 For?

The C8140 is built for:

• Buyers who want the Miyota 9000-series high-beat movement — unavailable in the Cadisen range at this price on any other model
• Open-heart buyers who want visible mechanical motion at under 10mm case thickness
• Slim dress watch buyers who need 9.5mm for cuff clearance with mechanical display character
• Buyers who want the smoothest possible seconds sweep (28,800 vph) in an open-heart dress watch

More from Jewelry Addicts

• Cadisen TI-7 Autodyne — titanium Cadisen at 58g
• Cadisen C8247 — entry-level Cadisen automatic
• Carnival 8026G Hollow — 8mm open-heart alternative
• Carnival 8017 Bauhaus — 8mm minimalist automatic
• Best Automatic Watches Under $200 — full roundup

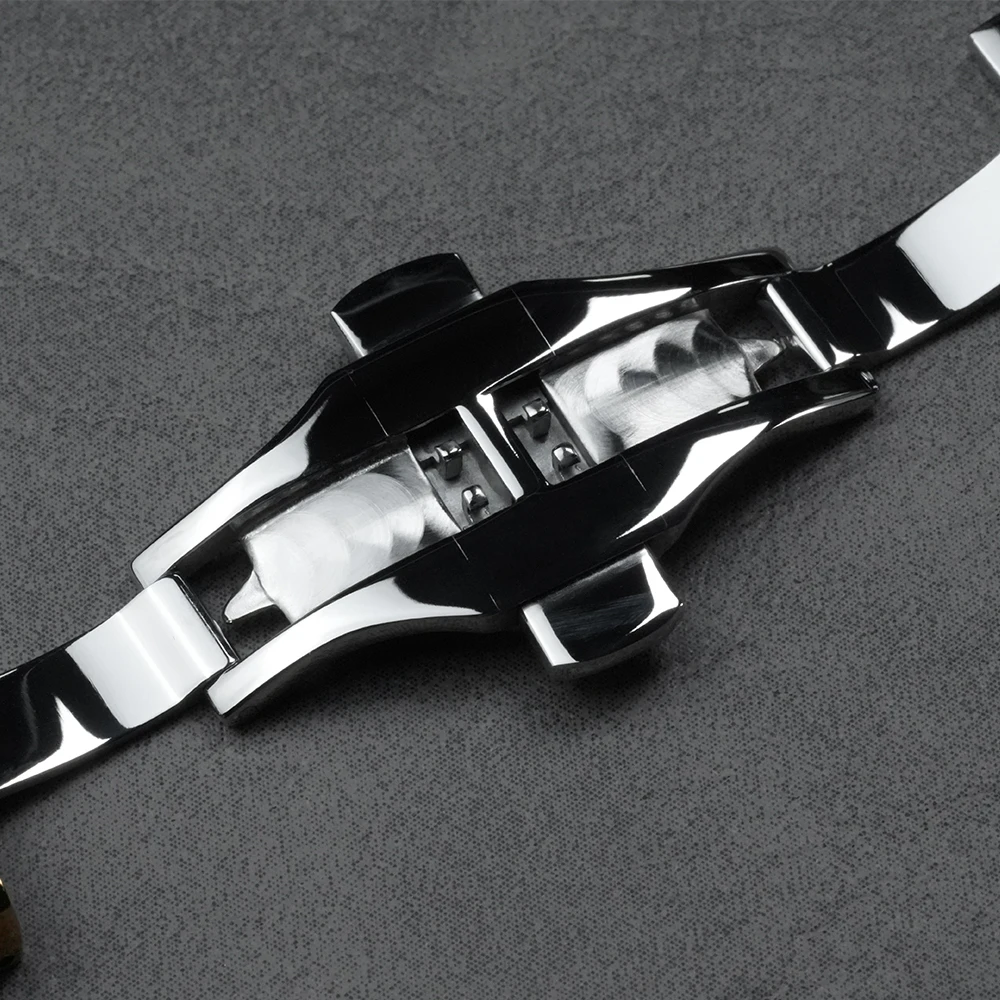

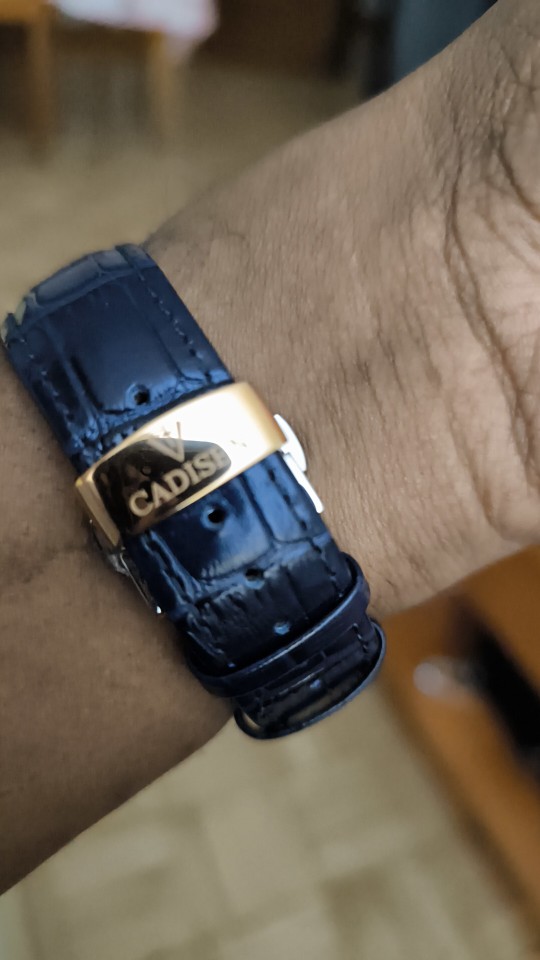

Butterfly buckle
